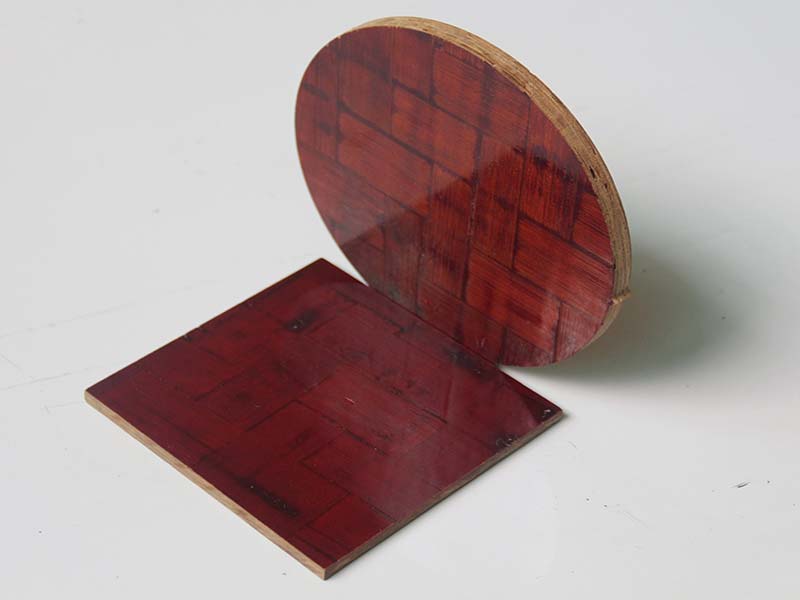

ZNSJ high strength bamboo plywood for construction is formed at high temperatures and pressures using the structure of “bamboo mat+
thin bamboo curtain+special phenolic glue”. The special phenolic glue is research-developed by the specialist in Central South University
of Forestry and Technology, which is higher 2-3 baume degree than counterparts in glue adhesiveness and concentration. Therefore our
high strengthbamboo plywood have the characteristics of higher bonding strength, higher waterproof, no tacking, and its turnover use time will
be more than 20 times.
2,Product Advantages
1)Bamboo plywood is with glossy and smooth surface;
2)Multi- using times and long lifespan :
3)Good water resistant performance;
4)Low thermal conductivity;
5)Bamboo plywood have big size and can be sawed and nailed, which can effectively reduce the quantity of supporting formworks.
Items |
Parameters |
Product Name |
Bamboo plywood, packing plywood, commercial plywood, Film faced Plywood , film faced bamboo plywood, bamboo formwork, bamboo board, bamboo pannel, bamboo plywood for construction |
Specifications |
1220*2440*(8-20)mm 1830*915*(9-10)mm |
Glue |
Phenolic glue |
Materials |
Bamboo |
Moisture Content |
≤10% |
Density |
≥0.90g/m3⊥ |
Modulus Of Elasticity |
//≥7×103N/mm2 ⊥5×103N/mm2 |
Modulus Of Rupture |
//≥90N/mm2 //≥60N/mm2 |
Impact Strength |
≥60Kg/m2 |
Bonding Strength |
≥0.80N/mm2 |
Abrasion Value |
<0.80g/100r |
Using times |
10-15times |
Preservation Stregth |
//≥60N/mm2 ⊥≥40N/mm2 |
Specifications |
Thickness(mm) |
Weight(kg/piece) |
1 20ft can load(pieces) |
1.22*2.44 |
8 |
20.24 |
990 |
9 |
22.77 |
880 |
|
10 |
25.3 |
792 |
|
11 |
27.83 |
720 |
|
12 |
30.36 |
660 |
|
13 |
32.89 |
609 |
|
14 |
35.42 |
566 |
|
15 |
37.95 |
528 |
|
16 |
40.48 |
495 |
|
17 |
43.01 |
466 |
|
18 |
45.54 |
440 |
High strength bamboo veneer plywood----- Tianjing trading company trust ZNSJ
Film faced plywood -----ZNSJ joined into foreign project with foreign trade company
Singapore Trading Company chose ZNSJ and exported 6600pieces of hardwood plywood for construction
SINOHYDRO BUREAU 11 CO.,LTD. chose ZNSJ for bamboo plywood for bridge construction
