Plywood For Construction
  • concrete formwork panel and shuttering plywood
  • concrete formwork panel and shuttering plywood
  • concrete formwork panel and shuttering plywood
  • concrete formwork panel and shuttering plywood

concrete formwork panel and shuttering plywood

  • Size: 1220*2440(12~18)mm/915*1830*(11~18)mm
  • Normal Thickness: 12mm/13mm/14mm/15mm
  • Glue: Phenolic glue/Melamine glue
  • Material: Eucalyptus
  • Application: hardwood plywood for construction used as template for concrete pouring in all kinds of building projects

We are here to help:Easy ways to get the answers you need.

  • Describe
  • Parameter
  • Packaging
  • Daily Output
  • Case
1, Product Introduction

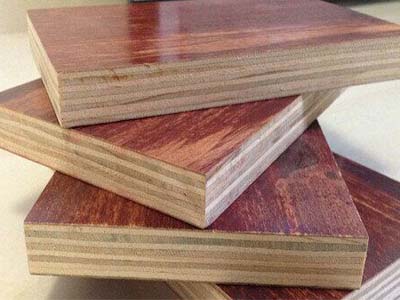

ZNSJ high strength concrete formwork panel and shuttering plywood , by using first class compete core veneer of fine pine, eucalyptus and hardwood etc, and each layers was well glued, then twice pressed through cold and hot pressing machine. There’ s no spaces in the middle of the board after sawed. The surface was smooth and well glued with waterproof Phenolic Glue.No warp, no distortion, no cracking, high strength, water resistance and so on, its turnover could be more than 10-15 times.

2, Product Advantages
ZNSJ high strength plywood for construction is with characteristics of flat and smooth, no deformation,light weight,easy processing. Compared with traditional steel template,
it’s light, wide dimension,more turnover times,and easily demoulded,corrosion resistance, surface smoothness, no remains on the concrete surface,what’s more it advoids the leakage and rough surface on construction when using steel template.



Items

Parameters

Product Name

plywood for construction ,construction formwork, wooden formwork,plywood for construction,
 shuttering plywood ,shuttering formwork, wood plywood, concrete formwork panel and shuttering plywood

Specifications

1220*2440*(12-18)mm    1830*915*(12-18)mm

Glue

Phenolic glue

Materials

Pine,Eucalyptus

Moisture Content

9%

Density

750kg/m³

Modulus Of Elasticity

≥5000   ≥4000

Modulus Of Rupture

//≥24/mm2  //≥20/mm2

Bonding Strength

0.76

Using times

8-10times






   Size(mm)

Thickness(mm)

Gross Weight(kg/piece)

40ft container(pcs)

Packing

1.83*0.915

12

12.06

2250

75 piece/pallet



13

13.06

2077

69 piece/pallet



14

14.07

1929

64 piece/pallet



15

15.07

1800

60 piece/pallet



16

16.07

1688

56 piece/pallet



17

17.07

1588

53 piece/pallet



18

18.07

1500

50 piece/pallet




  Daily Output of  concrete formwork panel and shuttering plywood is about 2000~4000pieces. If you want to order bamboo plywood , please advance 7~10days before loading date.Generally there are 10000~20000pieces of  wood formwork  for construction with different sizes in our warehourse.
Welcome to visit our factory!
