Plywood For Construction
  •  Commerial plywood film faced plywood
  •  Commerial plywood film faced plywood
  •  Commerial plywood film faced plywood
  •  Commerial plywood film faced plywood

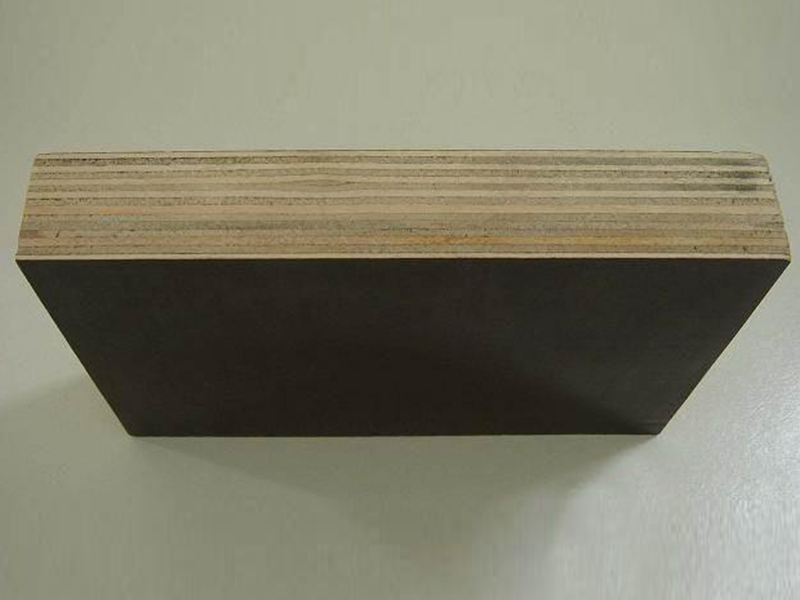

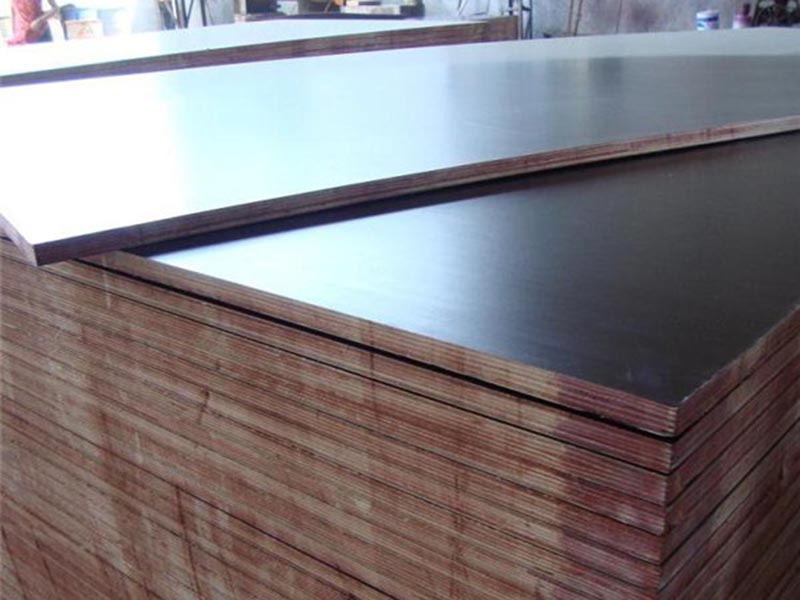

WBP Commerial plywood film faced plywood

  • Size: 1220*2440(10~20)mm/915*1830*(10~20)mm
  • Normal Thickness: 12mm/15mm/17mm/18mm
  • Glue: WBP/Dynea/melamine
  • Color: Red/black/brown
  • Material: Poplar

We are here to help:Easy ways to get the answers you need.

  • Describe
  • Parameter
  • Packaging
  • Daily Output
  • Case
1,Product features
1,Adopting the high quality poplar ,whole core and first grade,no holes in the middle of plywood after sawing, which can gurantee the toughness of the template;
2,Using the melamine glue from core to face, high glue concentration, which can gurantee glue adhesiveness ;
3,Adhering them manufacturing principles that each core board is with layer by layer gluing and with high pressure.Layer by layer gluing can fullly bond that impove 10-15% bonding strength. The hot pressure is 120% higher than the theoretical one ,avoiding to reduce pressure to keep the thicknes. The turnover of finished  commerial plywood film faced plywood  can be up to 10-15time, which ensure product be more durable;
4, two times sanding (secondary molding) before film facing ensure the smoothness of the template without burrs and groove marks.

2,Product application
High- rise construction, building construction, forming concrete, can be widely used  for  building concrete

 Items

  Parameters

Plywood size:

 1220*2440mm , 1830*915mm,4*8 ft,3*6ft

Plywood name

Film faced plywood, wooden formwork, wood formwork, Construction

Plywood, wooden construction formwork, Concrete formwork panel,

 shuttering plywood, shuttering formwork, commerial plywood film faced plywood

Glue

Melamine glue/MR WBP

Core

pine,hardwood,eucalyptus,combi etc

Thickness

10~20mm

Hot press

one time pressed and two time pressed

Application

High-rise construction, building construction, building concrete.

F/B

Black film, brown film, anti-slip film

Thickness tolerance:

+/-0.5mm

 Standard quality

natural wood face, one time hot pressing

High quality

double side film faced,twice hot pressing and sanding

Item



Unit

Standard value

Test result

Moisture



%

6 ~14

 9

Adhesive Force



Mpa

  ≥0.7

 0.76

Bending strength

Longitudinal

Mpa

  ≥24

 36



Cross



  ≥20

 22



   Size(mm)

Thickness(mm)

Gross Weight(kg/piece)

40ft container(pcs)

Packing

1220*2440

12

18.58

1500

75 piece/pallet

 1220*2440

13

20.12

1385

69 piece/pallet

 1220*2440

14

21.67

1286

64 piece /pallet

 1220*2440

15

23.22

1200

60 piece/pallet

 1220*2440

16

24.77

1125

56 piece/pallet

 1220*2440

17

26.31

1059

53 piece/pallet

 1220*2440

18

27.86

1000

50 piece/pallet




   Daily Output of commerial plywood film faced plywood  about 3000~5000pieces. If you want to order film faced plywood , please advance 7~10days before loading date.Generally there are 20000~40000pieces of  film faced plywood with different sizes in our warehourse.
Welcome to visit our factory!
