Customized Plywood
  • Bus bottom board
  • Bus bottom board
  • Bus bottom board
  • Bus bottom board

Bus bottom board

  • Size: as per customer's request
  • Normal Thickness: as per customer's request
  • Glue: Phenolic glue
  • Material: Bamboo
  • Usage: For bus floor/bamboo plywood for carriage flooring

We are here to help:Easy ways to get the answers you need.

  • Describe
  • Parameter
  • Packaging
  • Daily Output
  • Case
1,Product Features
Bus bottom board  was made by thin bamboo curtains which was rare in other factory’s product under processing after drying ,dipping into special
phenolic resin glue, combining with high temperature and high pressure.Bamboo curtains are very thin(thickness of about 1mm),for the same thickness of
the bamboo plywood, we will use more 5-10 layers of materials than other factories, so unique advantages of customized bamboo plywood  is high density,
no spaces after sawed, little gaps, good internal bonding strength, its lifespan is 2--3 years than others. Size of bamboo plywood could be tailor-made
according to customer requirements.

2,Other features
Compared with traditional compartment floor, bus bottom board is with high strength, impact resistance, cold resistance, non-absorbent, no
distortion, no cracking, not afraid of rain and the sun, steamed durability, and no any environmental impact, whole year available.,its using life could reach
more than 4~6 years.

Items

Parameters

Product Name

Bus bottom board, bamboo pannel, Elevator Panels, bamboo plywood, Pallet ,Bamboo Pallet ,

Specifications

as for customer’s requests

Glue

Phenolic Glue

Materials

Bamboo

Moisture Content

10%

Density

800~950kg/m3⊥

Modulus Of Elasticity

 ≥6×103N/mm2  ≥3.5×103N/mm2   ≥5×103N/mm2     ≥3×103N/mm2

Modulus Of Rupture

≥70N/mm2   ≥40N/mm2    ≥55N/mm2    ≥35N/mm2

Impact Strength

≥60Kj/m2

Bonding Strength

≥0.80N/mm2

Abrasion Value

≤0.80g/100r

Preservation Stregth

//≥60N/mm2 ⊥≥40N/mm2

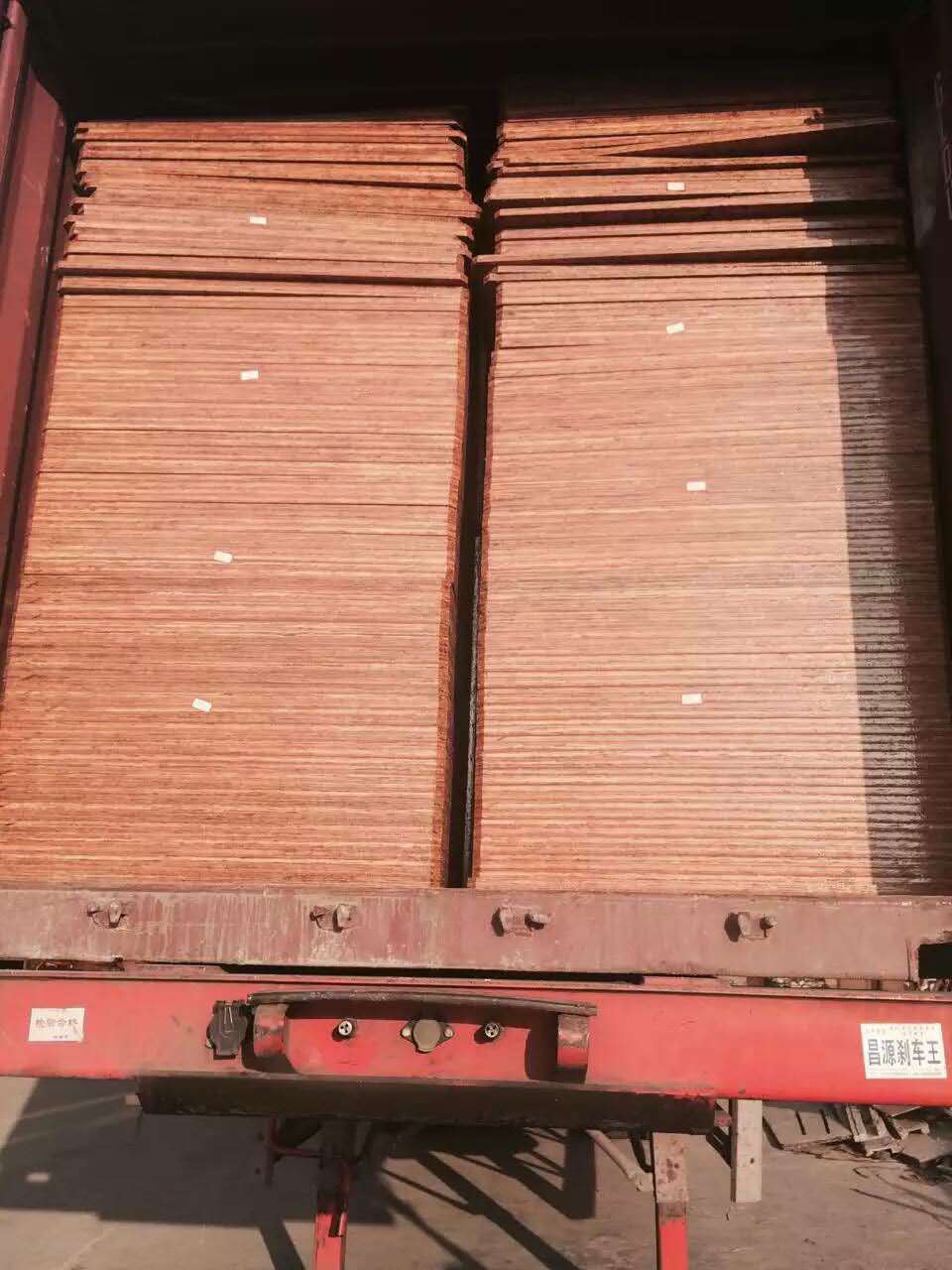

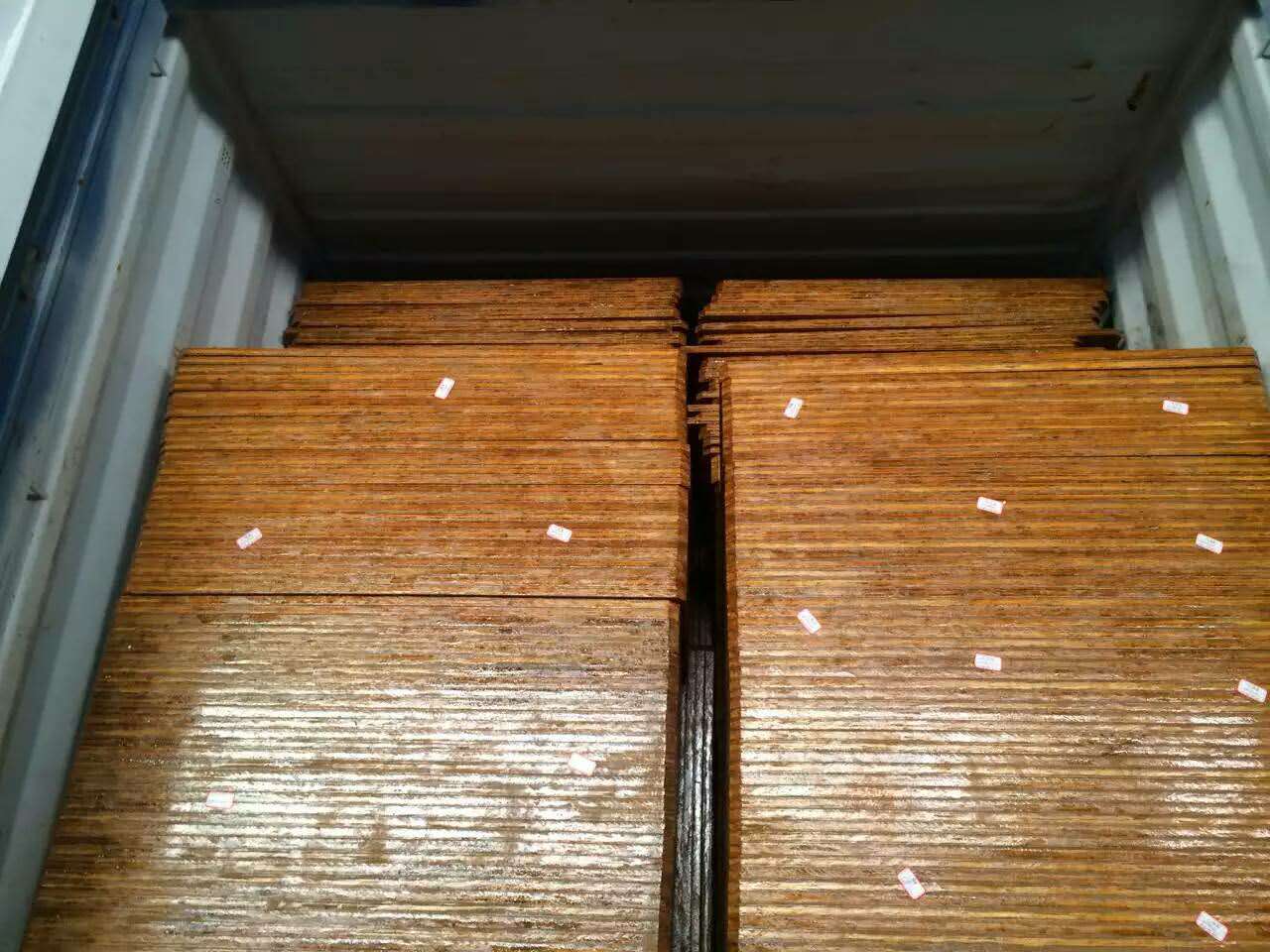

 Packaging Detail:
1, standard export package or as required.

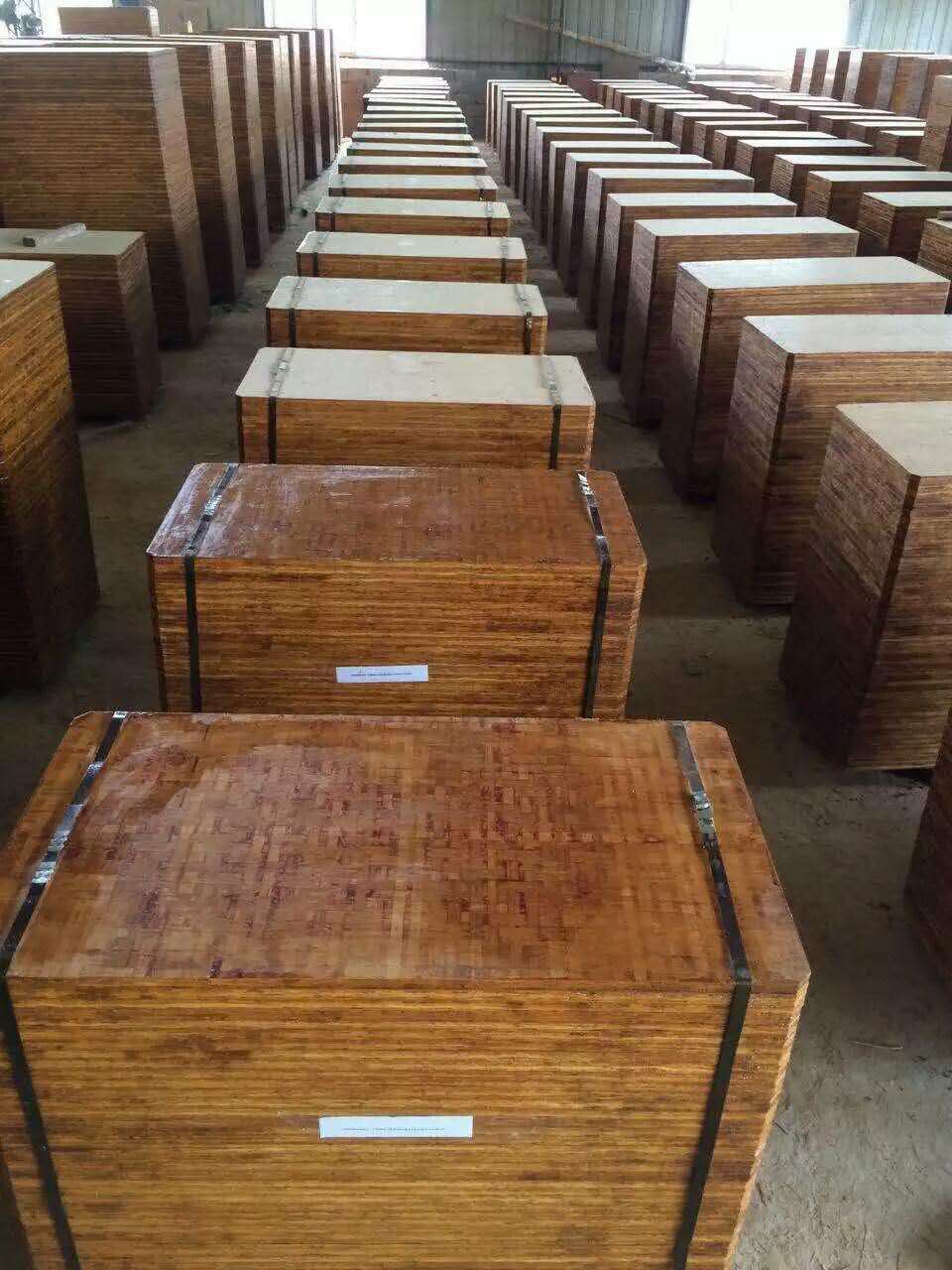

2, packed by metal strap in a way of Three horizontal and two vertical,it's about 60-80pcs per pallet,the height of every pallet is less than 1M.
3, nude packing or as required.




  Daily Output of bus bottom board is about 1000~2000pieces. If you want to order bamboo plywood , please advance 7~10days before loading date.Generally there are 10000~20000pieces of  customized bamboo plywood  with different sizes in our warehourse.
Welcome to visit our factory!
